    Cri/oFlex®3

    Cri/oFlex®3

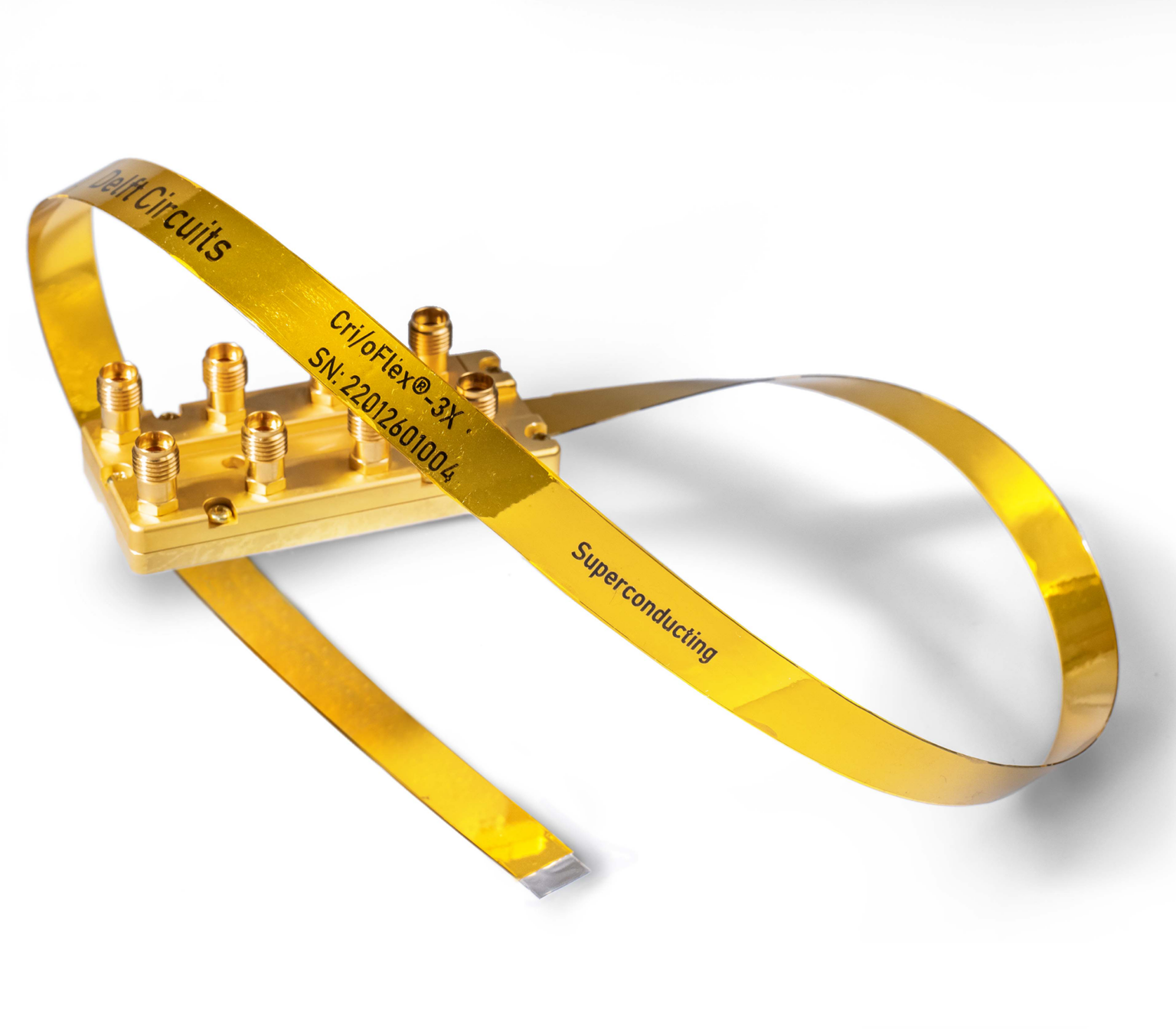

    Cri/oFlex® 3 flexible multichannel cable is our multichannel solution designed primarily for end-to-end i/o, providing high-density uninterrupted lines from room temperature to millikelvin levels. It is especially suited for situations where small size, low thermal load and excellent microwave performance are critical. A variety of options are available to meet your specific needs, such as vacuum feedthroughs, thermal clamps, and a choice between SMA or SMP connectors.Cri/oFlex® 3 solves your low-temperature cable extension challenges!

    Cri/oFlex®3 Overview

    Cri/oFlex® 3 flexible multichannel cable is our multichannel solution designed primarily for end-to-end i/o, providing high-density uninterrupted lines from room temperature to millikelvin levels. It is especially suited for situations where small size, low thermal load and excellent microwave performance are critical. A variety of options are available to meet your specific needs, such as vacuum feedthroughs, thermal clamps, and a choice between SMA or SMP connectors.Cri/oFlex® 3 solves your low-temperature cable extension challenges!


    Features:
    High density microwave channels
    Integral design from room temperature to millikelvin level
    Resistant to thermal cycling
    Optional filtering and signal conditioning
    Integrated vacuum feedthrough
    Low thermal load
    Microwave characteristics

    Cri/oFlex®3 Technical Parameter

    Cri/oFlex® 3 flexible multi-channel cable specification

    General characteristics
    Connector
    Connector type
    		Right-angle SMA(m)&SMP(m)
    Connector material
    		Gold-plated brass /BeCu PEEK/PTPE
    Shell
    		Stycast 2850
    Flexibility
    Bending length
    		200 to 1300 mm
    Number of channels
    		Eight channels
    Thickness
    		0.3 mm
    Material
    		Polyimide and silver (Ag)
    Transmission line type
    		Ribbon line
    Small bending radius
    		5 mm
    The length required for longitudinal rotation
    		10 cm/180° rotation
    Vacuum feedthrough
    Leakage rate
    		<10 -9 millibar L s-1
    Compatible vacuum connection
    		KF-40, Entropy System plate
    Electrical characteristics
    Impedance
    		Designed specifically for 50Ω
    Working frequency
    		DC to 10GHz
    Large crosstalk (between channels), L=200mm
    		< -40 dB
    Thermal properties
    Working temperature
    		10 mK → 400 K
    Passive heat load of a single CF3 per channel

    Cri/oFlex®3 Basic Configuration
